Mechanical Engineering

Stress Analysis

ANSYS • FEA • Structural Testing

Stress Analysis
Role

Analysis Engineer

Timeline

2025

Tools

ANSYS, SolidWorks, MATLAB, Excel

The Problem

Mechanical designs require validation before manufacturing to ensure they meet safety factors and performance requirements. Physical testing alone is expensive and time-consuming.

The Solution

Applied finite element analysis to validate structural integrity, identify stress concentrations, and optimize material distribution. Correlated simulation results with physical testing.

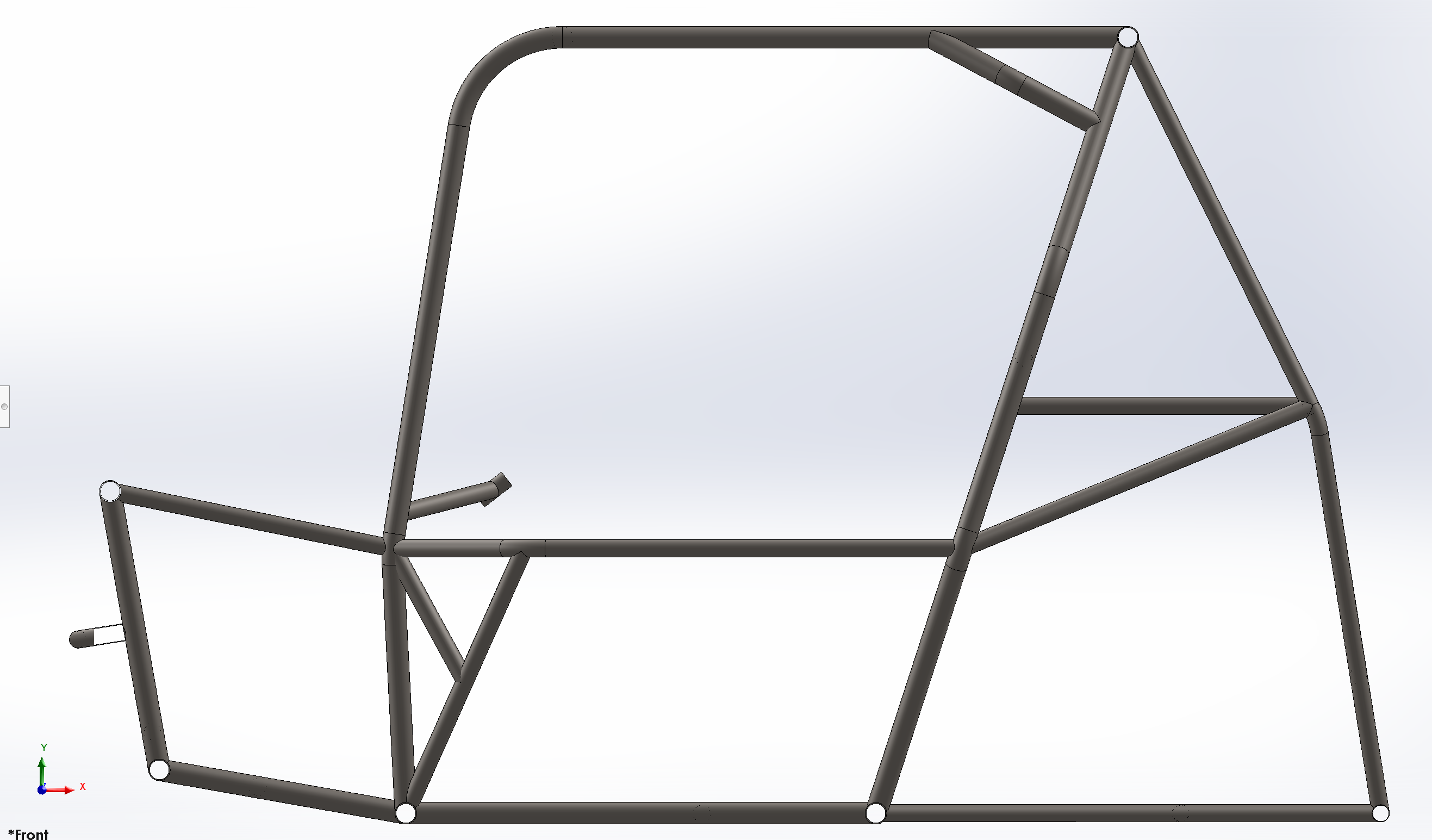

Stress Analysis - Image 1

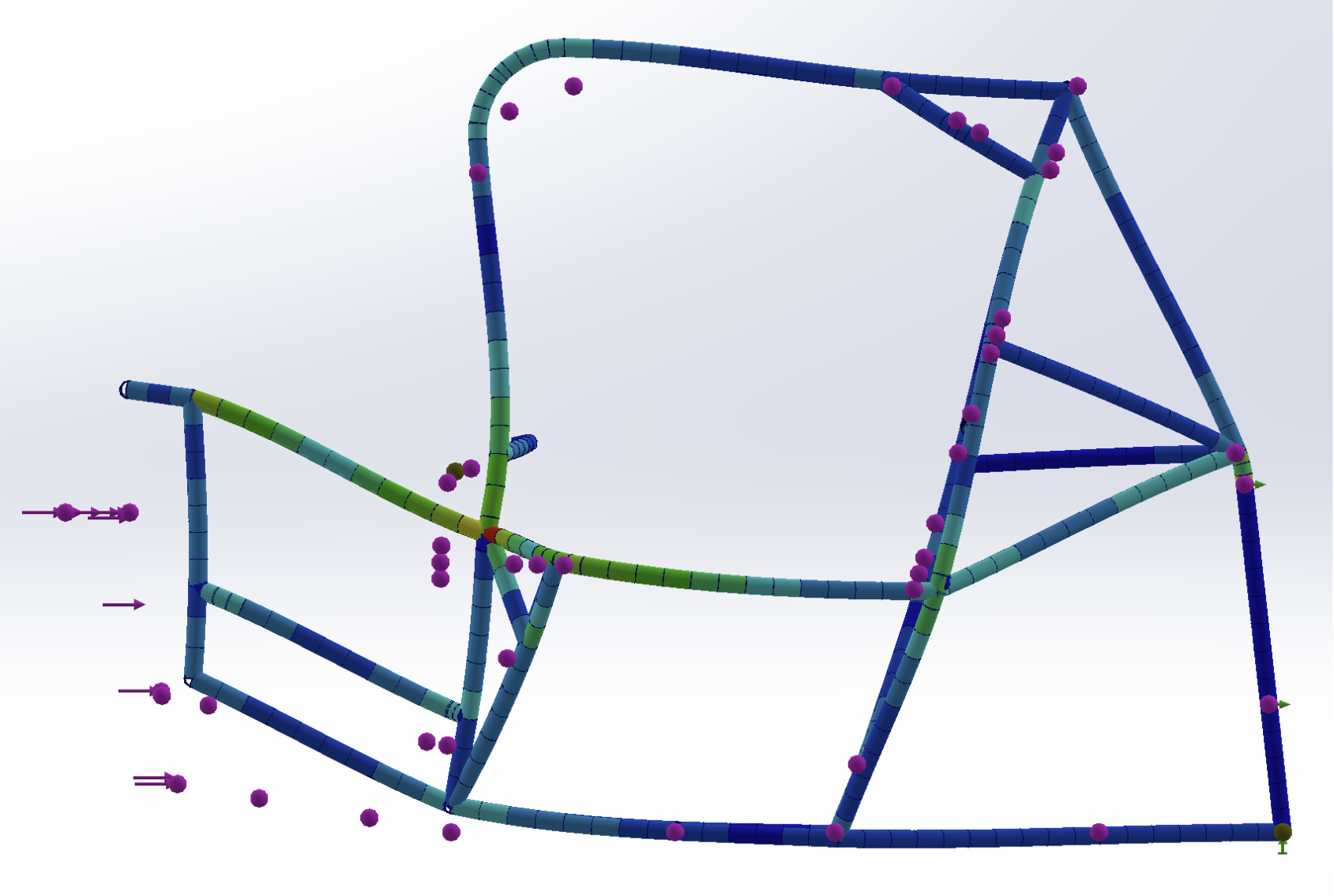

Stress Analysis - Image 2

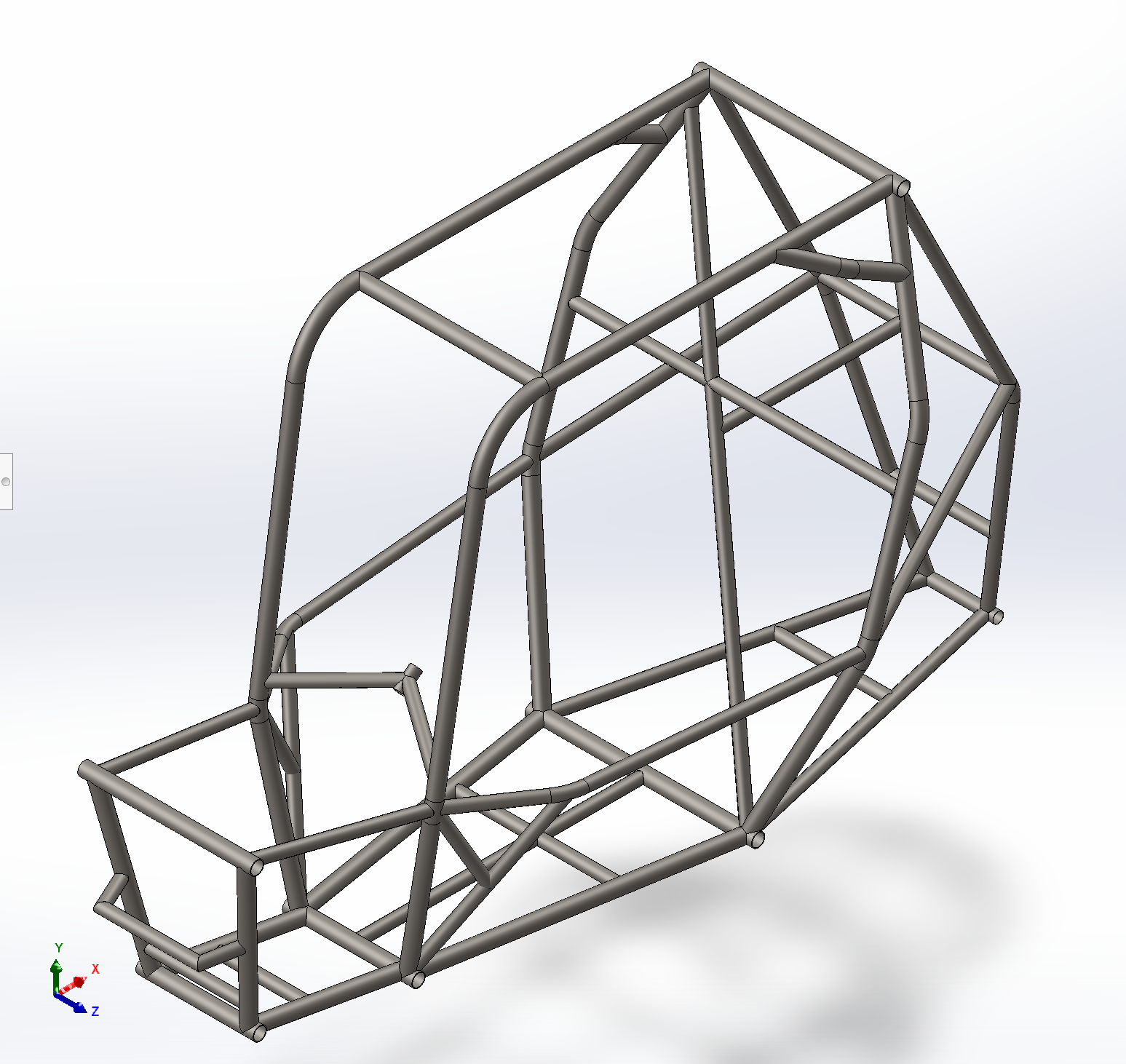

Stress Analysis - Image 3

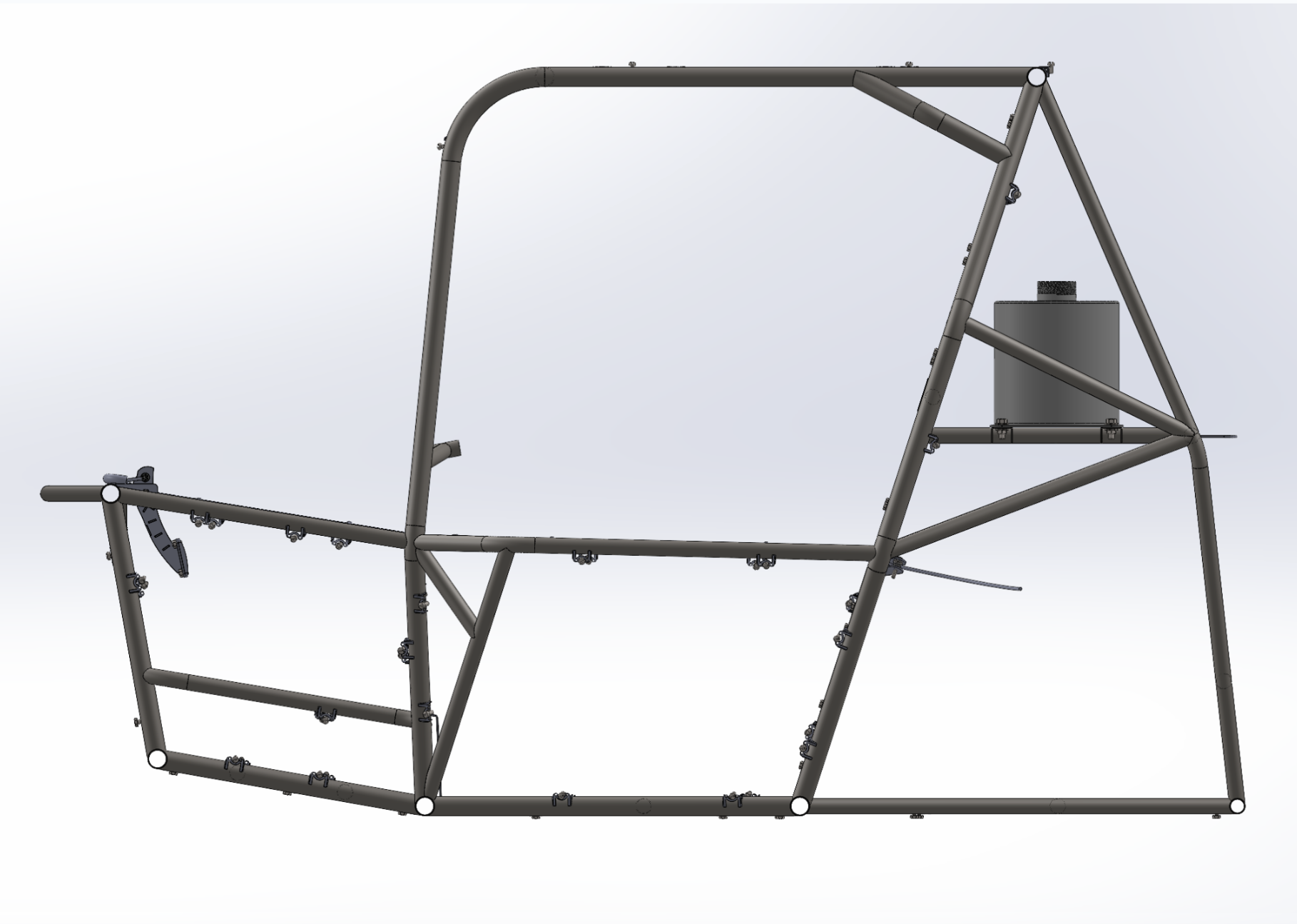

Stress Analysis - Image 4

Results

  • 01Identified critical stress concentrations before manufacturing
  • 02Achieved target safety factors through design iteration
  • 03Reduced prototype iterations through simulation
